Hikvision 8 Channel 720p DIY Kit - surveillance kit with 8 Hikvision 720p IR Bullet Cameras (DS-2CE16D0T-EXIPF, 2.8mm lens) and 8-channel DVR (DS-7108HGHI-F1). Supports H.265 and H.264 video compression, HDTVI/AHD/CVI/CVBS/IP input (up to 5MP IP cameras). Video output HDMI and VGA up to 1080p@60Hz. Maximum 1200m cable length for 720p HDTVI. Storage: 1 SATA (up to 4TB). Network support RJ45 Ethernet with Hik-Connect and DDNS. Features advanced motion detection with human and vehicle classification. Power supply 12VDC, operating temp -10°C to 55°C, size 200x200x45mm, weight under 1kg (without HDD). Includes 20m BNC coax cables for installation. Ideal for home/business security.

Product Overview

The Hikvision 8 Channel 720p DIY Kit Complete Installation Kit offers a reliable and easy-to-install surveillance solution ideal for homes and small businesses. The kit includes an 8-channel DVR (DS-7108HGHI-F1) and eight 720p IR bullet cameras that provide clear video footage day and night. It comes with all necessary accessories such as 20m BNC coaxial/power cables and a power supply, allowing straightforward setup.This kit supports comprehensive security coverage with user-friendly operation and features like remote viewing through mobile apps. It provides dependable video quality, making it a practical choice for those seeking effective video surveillance with a balanced combination of clarity, coverage, and ease of installation.

Specifications
- Product Code : HIK8CHKIT
- Product Overview : Hikvision 8 Channel 720p DIY Kit Complete Installation Kit
- Camera Count: 8 x Hikvision 720p IR Bullet Cameras (model DS-2CE16D0T-EXIPF, 2.8mm lens)
- DVR Video Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 formats
- Video Input: HDTVI / AHD / CVI / CVBS / IP compatible (up to 10-ch IP input, up to 5 MP resolution)
- Analog Video Input: 8-channel BNC interface, supporting coaxitron connection
- Audio Input: 1-ch RCA, 8-ch audio via coax
- Audio Compression: G.711u
- HDMI Output: 1 channel, up to 1920 x 1080 @ 60Hz
- VGA Output: 1 channel, up to 1920 x 1080 @ 60Hz
- Recording Resolution: up to 1080p Lite @ 30fps
- Max Cable Length: 1200 meters for 720p HDTVI signal
- Storage: 1 x SATA interface (supports up to 4TB HDD capacity)
- Network: RJ45 Ethernet 10/100 Mbps, supports Hik-Connect and DDNS
- Motion Detection: Deep learning based Human and Vehicle target classification Motion Detection 2.0
- Bandwidth: 72 Mbps total
- Power Supply: 12 VDC, 1.5 A
- Operating Conditions: Temperature -10°C to 55°C, Humidity 10% to 90%
- Size: 200 x 200 x 45 mm (DVR)
- Weight: ≤ 1 kg (without HDD)

The Hikvision DS-2CD2955G0-ISU offers high-quality imaging with a 5MP resolution and a 180° fisheye view, ideal for comprehensive surveillance coverage. It features efficient H.265+ compression and 120 dB true WDR technology to handle strong backlight conditions, along with up to 8 meters of IR illumination. With built-in audio capabilities, alarm interfaces, and support for both conventional power and PoE, this camera provides robust surveillance functionality for various indoor environments.

Product Overview

The Hikvision DS-2CD2955G0-ISU delivers high-quality 5MP imaging with a 180° fisheye view, ideal for wide-area surveillance in indoor settings. It features advanced H.265+ compression, true WDR technology for clear imaging in challenging lighting, and intelligent detection capabilities like motion and intrusion alerts. With built-in audio, alarm interfaces, and support for PoE power supply, this camera ensures efficient monitoring and seamless integration into security systems.

Specifications

•Product Code: DS-2CD2955G0-ISU-1.05mm
•Description: Hikvision 5MP 1.05mm Fixed Fisheye Network Camera
•High quality imaging with 5 MP resolution
•1/2.7" Progressive Scan CMOS
•2560 x 1920 Max. Resolution
•1.05mm Fixed focal lens
•Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV: 180°
•D: 21 m, O: 8 m, R: 4 m, I: 2 m
•Efficient H.265+ compression technology
•180° fisheye view
•Clear imaging against strong back light due to 120 dB true WDR technology
•Up to 8m IR
•850nm IR Wavelength
•U: Built-in microphone
•S: Audio and alarm interface
•1x input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
•1x output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
•1x input, 1x output (max. 12 VDC, 30 A) alarm
•1x RJ45 10/100MB self-adaptive Ethernet port
•12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection ; PoE: IEEE 802.3af, Class 3, max. 7.5 W
•*Power supply is not included

Hikvision 8 Channel DVR 2MP Camera 100M Cat6 Cable CCTV Kit - 8 × 2MP fixed mini bullet cameras with 1080p resolution, up to 20m IR night vision, IP67 weatherproof rating. The 4-channel DVR supports H.265 Pro+ compression,and up to 5 IP camera inputs (up to 2MP). Also included are 8 × baluns (Pairs), 8 × DC power connectors, and 1 × Securnix 8CH power supply-providing everything needed for a professional analog CCTV installation using Cat6 cable.

Product Overview

The Hikvision 8CH analog CCTV kit includes eight 2MP fixed mini bullet cameras with 1080p resolution, 20m IR night vision, and IP67 weatherproof rating, ideal for reliable outdoor surveillance. It uses Securnix 100m Cat6 cable with baluns to transmit video and power through a single cable, supporting neat long-distance installations. The 8-channel DVR features H.265 Pro+ compression, supports up to 5 IP cameras, and comes with all necessary accessories for a professional analog CCTV setup.

Specifications

•Product Code: HIK-2802-100M
•Description: Hikvision 8CH Analog CCTV Kit
•Image Sensor2 MP CMOS
•Signal SystemPAL/NTSC
•Max. Resolution1920 (H) × 1080 (V)
•Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
•Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
•Day & NightIR Cut Filter
•Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 90 , Rotation: 0 to 360
Lens
•Lens Type2.8 mm, 3.6 mm Fixed Lens
•Focal Length & FOV2.8 mm, horizontal FOV: 96.5 , vertical FOV: 48.9 , diagonal FOV: 120.5 3.6 mm, horizontal FOV: 76.9 , vertical FOV: 40.6 , diagonal FOV: 92.0
•Lens MountM12
Illuminator
•Supplement Light RangeUp to 20 m
•Supplement Light TypeSmart,IR,White Light
•Frame RateTVI: 1080p@25fps/30fpsAHD: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsCVBS: PAL/NTSC
•Wide Dynamic Range (WDR)Digital WDR
•Image Parameters SwitchSTD/HIGH-SAT
•Day/Night ModeAuto/Color
•White BalanceAuto
•Image EnhancementDWDR, BLC, Global
•Noise Reduction2D DNR
•Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
•Interface - Video OutputSwitchable TVI/AHD/CVI/CVBS
DVR

•Motion Detection 2.0
•Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
Video and Audio
•IP Video Input2-ch (up to 10-ch)Up to 5 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
•Analog Video Input8-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
•HDTVI Input1080p25, 1080p30, 720p25, 720p30
•AHD Input1080p25, 1080p30, 720p25, 720p30
•HDCVI Input1080p25, 1080p30, 720p25, 720p30
•CVBS InputSupport
•HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
•VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
•Video Output ModeHDMI/VGA simultaneous output
•Audio Input1-ch RCA (2.0 Vp-p, 1 K )8-ch via coaxial cable
•Audio Output1-ch, RCA (Linear, 1 K )
•Two-Way AudioReuse the first audio input
•Synchronous playback8-ch
Network
•Total Bandwidth72 Mbps
•Remote Connection64
•Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP , HTTPS
•Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
•SATA1 SATA interface
•CapacityUp to 4 TB capacity for each disk
•USB InterfaceRear panel: 2 × USB 2.0
•Alarm In/OutN/A

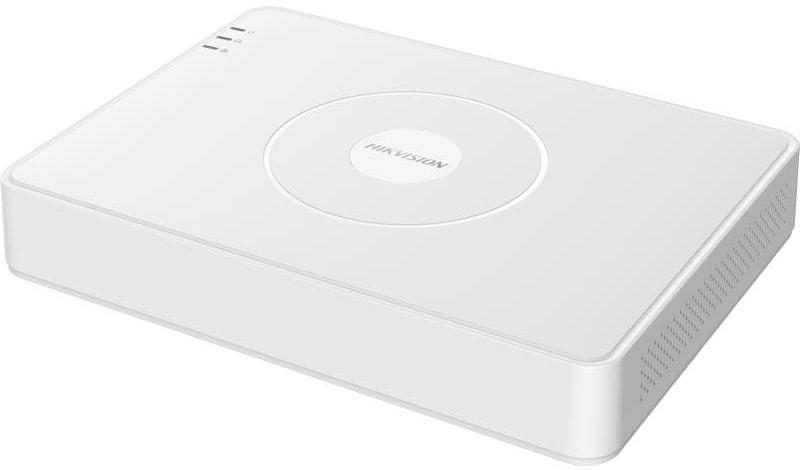

Hikvision 7100 Series 16-ch 720p Mini DVR DS-7116HGHI-M1 - 16 channels and 1 HDD 1U AcuSense DVR, Efficient H.265 pro+ compression technology, Encoding ability up to 3K/5M Lite @ 12 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 24 network cameras can be connected.

Product Overview

The DS-7116HGHI-M1 is a 16-channel 720p Mini 1U H.265 DVR featuring deep learning-based Motion Detection 2.0 for accurate human and vehicle classification, reducing false alarms. It supports multiple video inputs including HDTVI, AHD, CVI, CVBS, and up to 18 IP channels at 5MP resolution, with efficient H.265 Pro+ video compression for reduced storage needs. With up to 1080p Lite encoding at 15 fps, audio via coaxial cable, and a maximum 1200m transmission distance for 720p HDTVI signals, it offers versatile, high-quality surveillance recording and playback.

Features

•Smart Function
Deep learning-based motion detection 2.0
•Compression and Recording
H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p
•Storage and Playback
1x SATA interface (up to 10 TB capacity)
Smart search for efficient playback
•Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Specifications

•Product Code: DS-7116HGHI-M1
•Description: Hikvision 7100 Series 16-ch 720p Mini DVR
•Deep learning based human and vehicle targets classification of Motion Detection 2.0
•H.265 Pro+/H.265 Pro/H.265 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Max. 1200 m for 720p HDTVI signal
•Encoding ability up to 1080p lite @ 15 fps
•Audio via coaxial cable
•Up to 18-ch IP camera input (up to 5 MP)

Hikvision 2 MP Fixed Bullet Network Camera - High quality imaging with 2 MP resolution, Efficient H.265+ compression technology, Clear imaging against strong back light due to DWDR technology, Water and dust resistant, advanced infrared technology with long IR range, Retail Box, 6 Months Warranty

Product Overview

The Hikvision 2 MP Fixed Bullet Network Camera features a 2.8 mm or 4 mm fixed lens with wide horizontal FOV of 112.1° or 90.2°, delivering clear 1080p video at 25/30fps using H.265/H.264 compression. Equipped with IR illuminator reaching up to 30m and advanced imaging features like Digital WDR and 3D DNR, it ensures superior image quality in various lighting conditions. Designed for durability with an IP67 rating, it supports PoE power and multiple network protocols for flexible, reliable outdoor surveillance.

Features

•High quality imaging with 2 MP resolution
•Efficient H.265+ compression technology
•Clear imaging against strong back light due to DWDR technology
•Water and dust resistant (IP67)
•EXIR 2.0: advanced infrared technology with long IR range

Specifications

•Product Code: DS-2CD1023G0E-I
•Description: Hikvision 2 MP Fixed Bullet Network Camera
•Image Sensor: 1/2.7" Progressive Scan CMOS
•Max. Resolution: 1920 × 1080
•Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
•Shutter Time: 1/3 s to 1/100, 000 s
•Day & Night: IR cut filter
•Angle Adjustment
•Pan: 0° to 360°
•tilt: 0° to 180°
•rotate: 0° to 360°
Lens
•Focal Length & FOV
•2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
•4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
•Lens Mount: M12
•Iris Type: Fixed
•Aperture: F2.0
Illuminator
•Supplement Light Type: IR
•Supplement Light Range: Up to 30 m
•Smart Supplement Light: Yes
•IR Wavelength: 850 nm
Video
Main Stream
•50 Hz: 25 fps (1920 × 1080, 1280 × 720)
•60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
•50 Hz: 25 fps (640 × 480, 640 × 360)
•60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
•Main Stream: H.265/H.264/H.264+/H.265+
•Sub-Stream: H.265/H.264/MJPEG
•Video Bit Rate: 32 Kbps to 8 Mbps
•H.264 Type: Baseline Profile/Main Profile/High Profile
•H.265 Type: Main Profile
•Region of Interest (ROI): 1 fixed region for main stream
Network
•Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
•Simultaneous Live View: Up to 6 channels
•API: Open Network Video Interface, ISAPI
•User/Host: Up to 32 users. 3 levels: administrator, operator and user
•Client: iVMS-4200, Hik-Connect
Web Browser
•Plug-in required live view: IE 10+
•Plug-in free live view: Chrome 57.0+, Firefox 52.0+
•Local service: Chrome 57.0+, Firefox 52.0+
•Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
•Day/Night Switch: Day, Night, Auto, Schedule
•Wide Dynamic Range (WDR): Digital WDR
•SNR: ≥ 52 dB
•Image Enhancement: BLC, 3D DNR
•Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
•Basic Event: Motion detection, video tampering alarm, exception
•Linkage: Upload to FTP, notify surveillance center, send email
General
•Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
•PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Hikvision Basic Wireless Alarm Control Panel Kit - Supports Up To 32 Wireless Inputs And 4 Wireless Output Expanders, Two Way Wireless Technology , Supports Wifi and Ethernet Lan ( No GPRS), Push Notification Via App, Included 1x Wireless Control Panel, 1x PIR Motion Detector, 1x Reed Switch , 1x Magnetic Contact, 1x Remote Controller, 1x Manual, 1x Power Adapter, Built-in Rechargeable Lithium Battery , Complete Installation kit, Colour White

Hikvision DS-2CE16D0T-VFIR3F 1080P Bullet Camera - 2MP CMOS sensor, 1920x1080 resolution, 2.8-12mm varifocal lens, 102°-32° field of view, Smart IR with up to 40m IR distance, IP66 rated for outdoor use. Supports PAL/NTSC, day/night ICR switch, internal synchronization, and 1080p video at 25/30fps. Power: 12 VDC, max 5W. Dimensions: 92 x 85 x 270 mm, weight approx. 900g. Pan 0°-360°, tilt 0°-90°, rotation 0°-360° adjustment. Ideal for detailed outdoor surveillance, Retail Box, 1 Year warranty

Product Overview
This Hikvision bullet camera is designed for detailed outdoor surveillance with high-definition 1080p video quality and a versatile varifocal lens that allows adjustable viewing angles from wide 102° to narrow 32°. It features Smart IR technology for clear images even in low light or nighttime environments, with infrared illumination up to 40 meters. Rated IP66, the camera is weather-resistant for reliable outdoor use. Suitable for securing homes, businesses, or outdoor areas, it supports multiple video formats and has a robust design with flexible mounting options for precise coverage



Features
• 2 megapixel high performance CMOS
• Analog HD output, up to 1080p resolution
• Day/Night switch
• Smart IR
• Up to 40 m IR distance
• Switchable TVI/AHD/CVI/CVBS
• IP66

Hikvision 1080P Dome, Vari-Focal 2.8-12mm, 30m IR, 4in1, 102.25-32 Degree Horizontal View, Retail Box, 1 Year warranty

Product Overview

The 2 MP Indoor PoC Manual Varifocal Dome Camera offers crisp high-definition video with a versatile 2.8 mm to 12 mm varifocal lens for adjustable field of view. Equipped with up to 30 meters of IR distance, it ensures clear night-time imaging. It simplifies installation by transmitting both HD video and power simultaneously over a single coaxial cable.



Features:
• 2 megapixel high performance CMOS
• Analog HD output, up to 1080p resolution
• Day/Night switch
• Smart IR
• Up to 30 m IR distance
• Switchable TVI/AHD/CVI/CVBS

Product Overview

The 2 MP Smart Hybrid Light with ColorVu Fixed Bullet Camera delivers high-quality 1920 x 1080 resolution imaging, ensuring clear visuals day and night with its F1.0 aperture for 24/7 color imaging. Featuring a smart-hybrid light system and advanced 3D DNR technology, it provides flexible lighting options and sharp images, even in low-light conditions. With a robust design that includes up to 40m white light and IR distance, along with audio capabilities and IP67 water and dust resistance, this camera is ideal for comprehensive outdoor security.

Specifications

Product Overview

The 2 MP Manual Varifocal Turret Camera features a 2.8 mm to 12 mm adjustable lens for flexible viewing angles and up to 40 meters of IR night vision for clear imaging in low light. Built with IP66-rated water and dust resistance, it’s ideal for outdoor use in various weather conditions. It supports one port with four switchable video signals (TVI/AHD/CVI/CVBS) for versatile compatibility.

Wireless internal 12m Dual-technology detector Detection range: 12 m x 12 m, 85 degreesRF 433MHzOffers reliable protection utilizing two-way wireless technologyPet immunity up to 24 kgPIR+Microwave detectionTamper alarm, intruder alarmCommunicates up to 800 m (in open areas).

Product Overview

This Wireless Internal 12m Dual-Technology Detector provides robust security with a 12m x 12m detection range and 85-degree coverage. Utilizing PIR and microwave detection, it ensures accurate intruder alerts while offering pet immunity up to 24kg. With two-way RF 433MHz wireless communication and an 800m range, it delivers reliable performance for modern security needs.

Specifications

•Product Code: DSPD2D12W
•Description: Hikvision Wireless Dual Tech Detector
•Bi-directional communication
•Dual technology
•Tamper detection
•Includes ceiling and wall mounting brackets
•Wireless range up to 800m open air.
•Detection range: 12m
•Detection angle: 85 Degrees
•Mounting height: 1.8 to 2.4m
•Frequency: 433MHz
•Battery: Dual CR123A
•Size: 117mm x 69mm x 62mm
•Weight: 135g
