Specifications

Cores
•Cores and Threads
•Total Cores: 24 cores
•Performance-cores: 8 cores
•Efficient-cores: 16 cores
•Total Threads: 32 threads

Clock Speeds
•Base Clock Speed: 2.0 GHz (Performance-cores), 1.5 GHz (Efficient-cores)
•Max Turbo Frequency: Up to 5.8 GHz
•Performance-core Max Turbo Frequency: Up to 5.4 GHz
•Efficient-core Max Turbo Frequency: Up to 4.3 GHz

Cache
•L2 Cache: 32 MB
•L3 Cache (Intel Smart Cache): 36 MB

Power Consumption
•Processor Base Power (PL1): 65 W
•Maximum Turbo Power (PL2): 219 W

Memory Support
•Max Memory Size: Up to 192 GB
•Memory Types: Supports DDR5 up to 5600 MT/s and DDR4 up to 3200 MT/s
•Memory Channels: 2 channels

Integrated Graphics
•Integrated Graphics: Intel UHD Graphics 770

PCIe Support
•PCIe Version: Supports PCIe 5.0 and 4.0
•PCIe Lanes: 20 lanes

Architecture and Socket
•Architecture: Intel 7 (Nicknamed Raptor Lake)
•Socket: LGA 1700

Advanced Technologies
•Intel Thread Director: Yes
•Intel Hyper-Threading Technology: Yes
•Intel Turbo Boost Technology: Yes
•Intel Thermal Velocity Boost: Yes

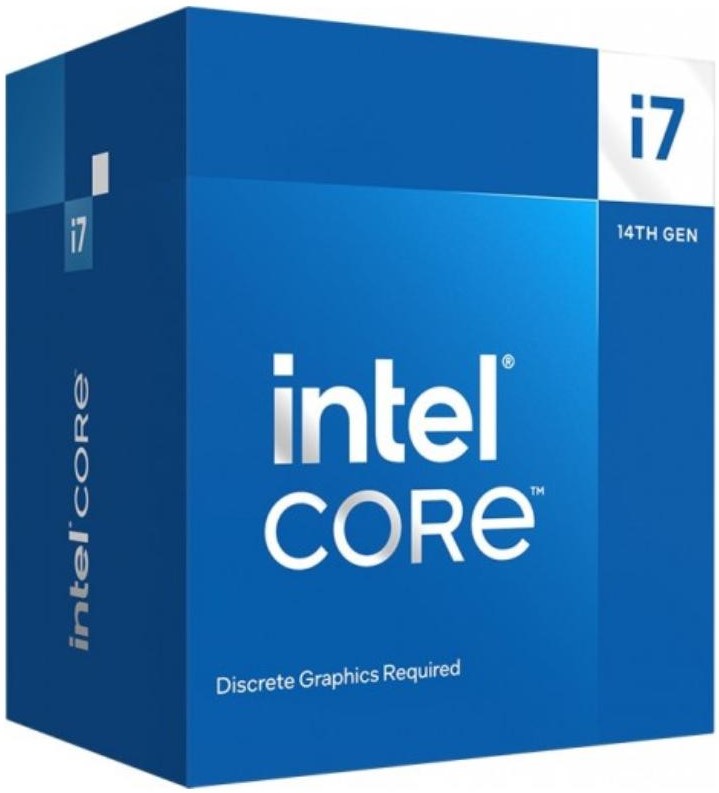

Intel Core i7 14700F Up to 5.4 GHZ; 20 Cores (8P+12E); 28 Thread; 33MB Smartcache; 65W TDP; Intel® Laminar RM1 Cooler included.

Product Overview

The Intel Core i7-14700F is a 20-core, 28-thread desktop processor based on the Raptor Lake Refresh architecture, featuring a base clock of 2.1 GHz and turbo boost up to 5.4 GHz. It offers 33 MB of L3 cache and supports both DDR4 and DDR5 memory with dual-channel and ECC capabilities for enhanced reliability. Ideal for demanding workloads, this CPU fits Socket 1700 motherboards and leverages Intel Hyper-Threading for superior multitasking performance. Share Export Rewrite

Specifications

•Product Code: BX8071514700F
•Description: Intel Core i7-14700F 20-Core 5.40GHz LGA1700 Processor
•Brand: Intel
•Series: Intel 14th Gen Raptor Lake Series
•Model: BX8071514700F
•Sockets Supported: LGA 1700
•Cores: 20
•Threads: 28
•Max Turbo Frequency: 5.4 GHz
•Efficient-core Max Turbo Frequency: 4.2 GHz
•Cache: 33 MB Intel® Smart Cache
•Performance-core Max Turbo Frequency: 5.3 GHz
•Base Power: 65w
•Turbo Power: 219w
•Max Memory Supported: 192GB
•Memory Types: Up to DDR5 5600 MT/s
•Up to DDR4 3200 MT/s
•Max Memory Bandwidth: 89.6 GB/s

The Cooler Master Hyper 212 Spectrum V2 is a versatile CPU air cooler designed for enhanced performance and aesthetics, featuring a sleek design with customizable RGB lighting. It includes a robust cooling system with four copper heatpipes and a 120mm fan, providing efficient heat dissipation for a wide range of CPUs. With its simplified installation process and compatibility with multiple Intel and AMD sockets, it offers a reliable and visually appealing cooling solution for both entry-level and mid-range systems.

Product Overview

The Cooler Master Hyper 212 Spectrum V2 is a high-performance CPU air cooler featuring four heat pipes and aluminum fins for efficient heat dissipation, along with a Spectrum 120 PWM fan that offers customizable addressable RGB lighting. Its Direct Contact Technology ensures optimal heat transfer, while the Snap and Play design simplifies installation across various CPU sockets, including Intel LGA and AMD AM series. With a fan speed range of 650-1800 RPM, it provides quiet and effective cooling for demanding applications like gaming and content creation.

Features

•Spectrum 120 PWM fan
•Direct contact technology
•Snap and Play
•Easy installation

Specifications

•Product Code: RR-2V2L-18PD-R1
•Description: Cooler Master Hyper V2 212 Spectrum Processor Air Cooler
•Color: Black & Silver
•CPU Socket: LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4
•Dimensions (L x W x H): 120 x 80.5 x 157 mm / 4.7 x 3.2 x 6.2 inch
•Heat Sink Material: 4 Heat Pipes, Aluminum Fins
•Fan Dimensions (L x W x H): 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
•Fan Profiles: Addressable RGB
•Fan Quantity: 1 PC
•Fan Speed: 650-1800 RPM ± 5%

Alternate Description
Arctic Freezer A30 CPU Cooler - For AMD, 4 Mounting Directions, 120mm Fan, 4 Heat pipes, Aluminium Fins, Fluid Dynamic Bearing, 320 Watts, 0.24A Current, 12V, 74 CFM, Silent

•Direct Touch Heat pipe Heatsink:-The Freezer A30 Heatsink consists of 4 double-sided direct touch heat pipes, 8mm in diameter. A patented process (20 2011 000 71.8) allows us to pack the heat pipes without gaps and thus increase the contact surface and achieve better flatness by precision machining - both leading to an improved heat transfer.

•Efficient Heat Dissipation:-As a combined result of the 4 direct touch heat pipes, 48 Aluminium fins, an interchangeable 120 mm PWM Fan (ARCTIC F12 PWM), and the famous ARCTIC MX-4 thermal compound (included), the Freezer A30 offers superior cooling performance with a maximum cooling capacity of 320 Watts and lots of headroom for overclocking.

•Virtually Silent:-Due to the low-noise impeller of the Arctic F12 PWM fan and the rubber vibration absorbers, the Freezer A30 generates a negligible noise level of only 0.3 Sone even at full speed (1,350 RPM). Furthermore, as controlled by PWM signal, this fan runs only at the optimized speed based on actual needs, which in turns minimizes the noise level further.

•Sturdy Mounting Mechanism:-There is no need to worry about the weight of this muscular, yet gentle cooler. The Arctic Freezer A30 applies a durable steel mounting clip and a back-plate*. As a result it has an excellent mounting stability and is fully transport-proof.

•Interchangeable Fan:-Not that you have to replace the fan, but that flexibility is offered!

Specifications
•Max. Cooling Capacity: 320 Watts
•Heat pipe: Direct-Touch Ø 8 mm x 4 (double-sided)
•Heatsink Material: Aluminium fins x 48, thickness: 0.5 mm
•Fan: 120 mm, 300 - 1,350 RPM (controlled by PWM)
•Bearing: Fluid Dynamic Bearing
•Noise Level: 0.3 Sone
•Current / Voltage: 0.22A / 2.8 - 12V
•Dimensions: 139 (L) x 100 (W) x 161 (H) mm
•Net Weight: 905 g

Manhattan CPU Cooler P4 up to 2.4GHZ, Retail Box , No warranty

Product Overview

The Manhattan CPU Cooler P4 up to 2.4GHZ is designed to effectively cool Intel P4 processors, ensuring they operate at safe temperatures and peak performance levels. It features a lightweight, rugged aluminum and copper heat sink construction for efficient thermal conductivity and dissipation. A high-efficiency fan with ball bearings provides quiet and reliable cooling. The cooler supports processors up to 3.4 GHz, making it versatile for various system configurations. It is available in a retail box with no warranty included.

Specifications

- Product Code : 701785
- Product Overview : Manhattan CPU Cooler P4 up to 2.4GHZ
- Product Type: CPU Cooler
- Compatibility: Designed for Intel P4 processors up to 2.4 GHz
- Heat Sink Dimensions: 83 x 69 x 37 mm (3.25 x 2.7 x 1.5 in.)
- Fan Dimensions: 70 x 70 x 15 mm (2.75 x 2.75 x 0.6 in.)
- Weight: 390 g (13.8 oz.) [Note: Another source lists a different weight, but this is likely an error or refers to a different packaging or configuration]
- Air Flow: 29.58 cfm
- Fan Speed: 3500 rpm ± 10%
- Thermal Resistance: 0.34 C/W
- Rated Voltage: 12 V

- Warranty: No warranty included

Alternate Description
Arctic F14 PWM Case Fan, 140mm Fan, 550 ~ 1,350 RPM, 77.3 CFM, 24.4 dBA, 0.16A Current,12V

Product Overview
The Arctic F14 PWM forward the PWM signal from the CPU to the whole case ventilation system that offers a perfect mix of performance and durability.

This 140mm fan takes care that heat emitted in the course of operation is dissipated effectively. The blade spins at 550 - 1,350 RPM with 77.3 CFM to produce high pressure airflow. With 0.5 Sone Noise Level, it allows a silent work environment and uses just 12V to run conserving energy.

Sporting a standard 25mm frame, this PWM Case Fan can be used as intake or outtake system fan. It features a fluid dynamic bearing and comes in a patented fan holder design that not only guarantees an ultra-quiet operation, but also boasts of durability.

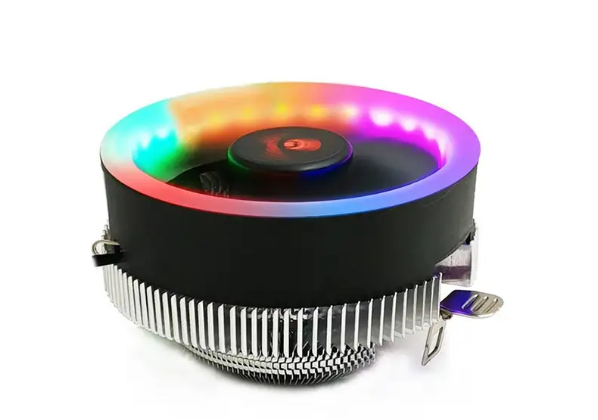

The CoolMoon Q2 RGB LED CPU Fan is a compact, silver-colored air cooler featuring a single 90mm PWM fan with ARGB lighting. It operates at 2200 RPM, delivering 35.07 CFM airflow at a noise level of 22.7 dBA. Compatible with Intel and AMD sockets (e.g., LGA 775, 1151, AM3+, AM2), it uses hydro bearings for durability, has a rated voltage of 12V, and includes a 4-pin connector. The fan weighs 460g and comes with a one-year warranty.

Product Overview
The CoolMoon Q2 RGB LED CPU Fan is a compact and efficient air cooler designed for Intel and AMD CPU sockets, including LGA 775, 1150, and AM3+. It features a single 90mm PWM fan with ARGB lighting for aesthetic customization. Operating at a speed of 2200 RPM, the fan delivers an airflow of 35.07 CFM while maintaining a low noise level of 22.7 dBA. With hydro bearings and a lifespan of 40,000 hours, it ensures durability and reliable performance. The fan measures 100x100x25mm, weighs 460g, and connects via a 4-pin connector at a rated voltage of 12V. This cooler is ideal for compact builds requiring effective cooling and stylish lighting effects

Specifications
Product Code: UNFNQ2RGB
Product Overview: UniQue CoolMoon Q2 RGB CPU Cooler Fan
Product Number: COOLMOON-Q2RGB
Exterior Color: Silver
Cooler Type: RGB CPU Air Cooler
Dimensions: 100 x 100 x 25mm
Socket Compatibility:
Intel: LGA 775, 1150, 1151, 1155, 1156, 1366
AMD: AM2, AM2+, AM3, AM3+
Fan Details:
Quantity: 1x 90mm PWM Fan
LED Type: ARGB (5 colors, 25 LEDs)
Speed: 2200 RPM
Airflow: 35.07 CFM
Noise Level: 22.7 dBA
Pressure: 1.22 H20
Bearing Type: Hydro Bearing
Lifespan: Up to 40,000 hours
Power Connector: 4-pin (Fan)
Rated Voltage: 12V
Rated Current: 0.18A
Weight: 460g
Condition: New
Warranty: One year

UniQue Premuim Fan For P4 up to 2.8GHz Retail Packaging 3 months warranty

UniQue Case Fan 120mm 4-Pin , OEM, No warranty

Features:
Silent fan cooling system
Special high profile fan blades for maximum air flow
4 pins connector male and female
Provide excellent ventilation for your PC cases
